Safeview CCTV®: Clear, Artefact-Free Patient Monitoring for MRI Environments
Ensure patient safety and maintain scan integrity with the Safeview CCTV MR6500. Engineered specifically for the magnetic resonance environment, this system delivers high-quality visual monitoring without interfering with the scanner's magnetic field.
Key Benefits
- Artefact-Free Performance: Manufactured and tested to the highest standards to give artefact-free scans.
- High-Field Compatibility: Specialized systems available for both 1.5T and ultra-high-field 7.0T environments.
- Interference-Free Transmission: Utilizes fibre optic cables for video transmission to ensure signal integrity.
- Low-Light Operation: Capable of operating in the low ambient light levels often encountered in magnet rooms.
🇬🇧
The Safeview CCTV® system is designed & manufactured by Magstripe in the UK
Technical Specifications
- Model Options
- MR6500 - approved to 3T, with options for multi-head configurations.
- Lens Adjustments
- Manual control for Aperture and Focus. Large zoom range to support distant camera mounting.
- Low Light Performance
- Electronic Automatic Gain Control (AGC) for operation in low ambient light levels.
- Connectivity
- Fibre Optic video transmission (Bayonet 'ST type' connectors).
- Power Input
- 12V DC via 4-pin XLR connector.
- Mounting Position
- Wall-mounted at rear/front of magnet, positioned above the bore axis.
- Penetration Panel Filter
- Dimensions: 60mm x 30mm footprint.
Mounting Hole Required: 19mm diameter. - Video Receiver
- Fibre Optic Receiver Unit (Black Box) located in Control Room.
- Video Output
- HDMI to 19" Full HD TFT Monitor.
- Cabling
- Shielded Oliflex© power cable (2x0.75mm) required for in-room DC connection.

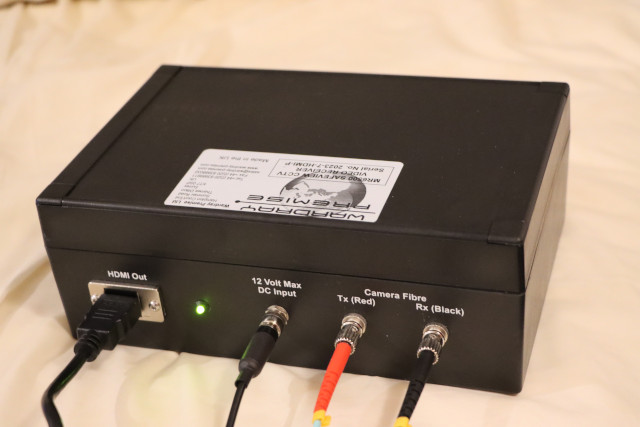

Safeview CCTV® MR6500 Fibre Optic receiver
